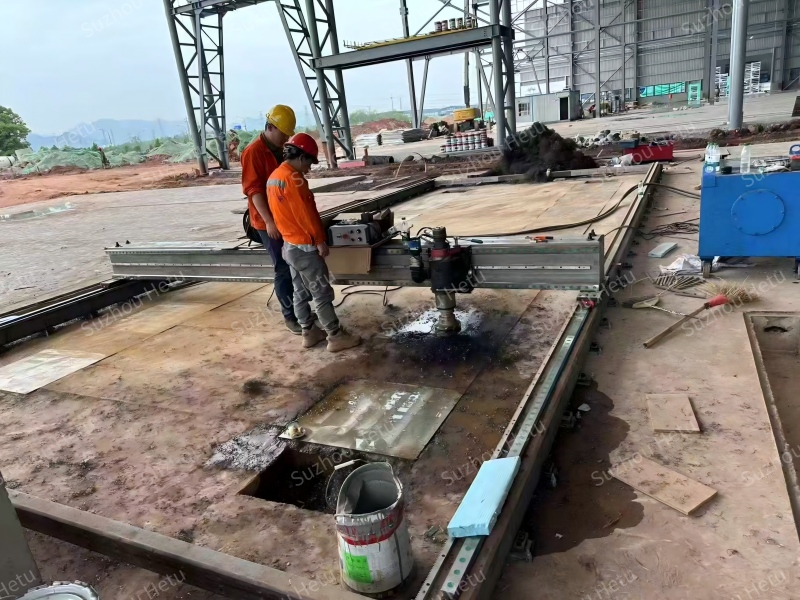

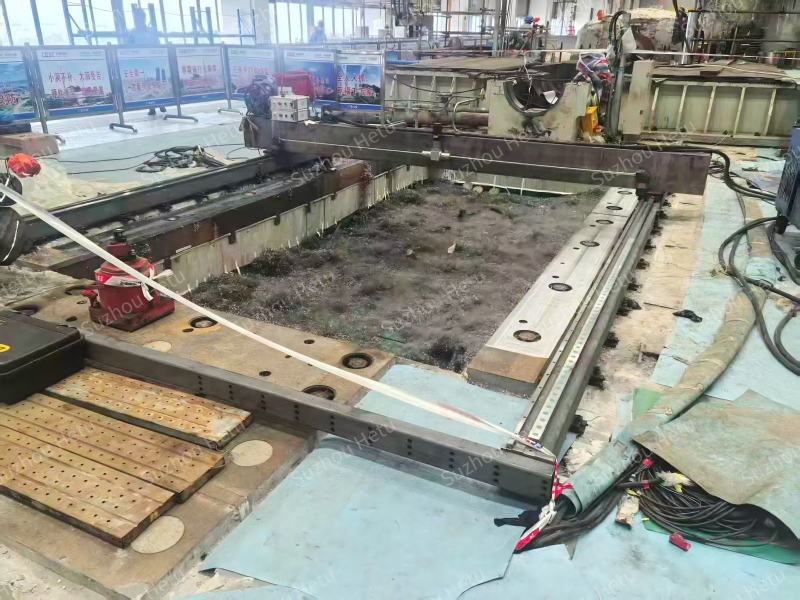

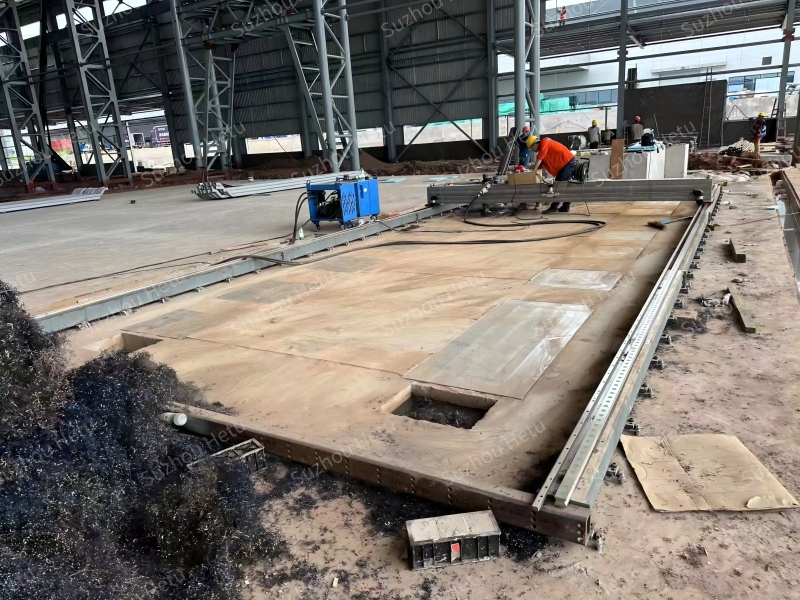

The gantry-type portable milling machine offers exceptional degrees of freedom. Travel ranges for the X, Y, and Z axles can be flexibly selected to meet diverse work piece machining requirements.
By featuring modular design, the gantry system is quick to assemble, easy to operate, and delivers high machining efficiency. It is widely used in applications such as:
· Heat exchanger repair
· Motor and pumps mounting pads
· Steel mill housings
· Shipbuilding structures
· Turbine split line machining

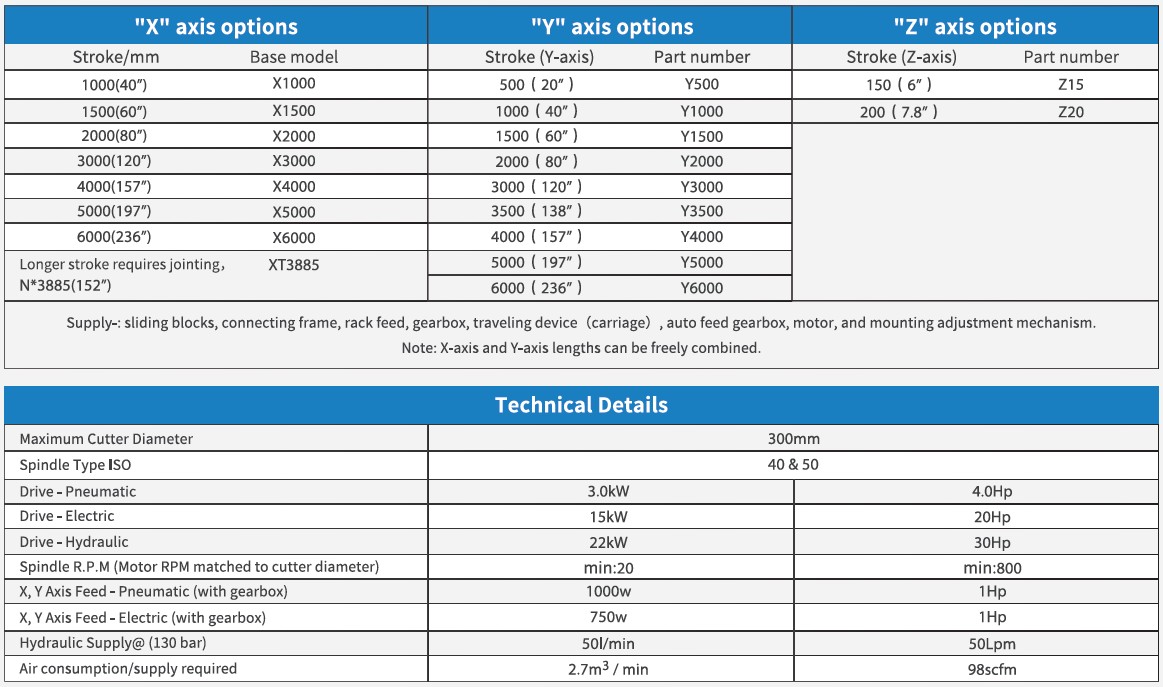

Travel Specifications:
· X-axis: 1000–6000 mm (7 standard models); longer strokes available on request
· Y-axis: 500–6000 mm (9 standard models)
· Z-axis: 150 mm / 200 mm
Drive Options: Hydraulic / Electric / Air
