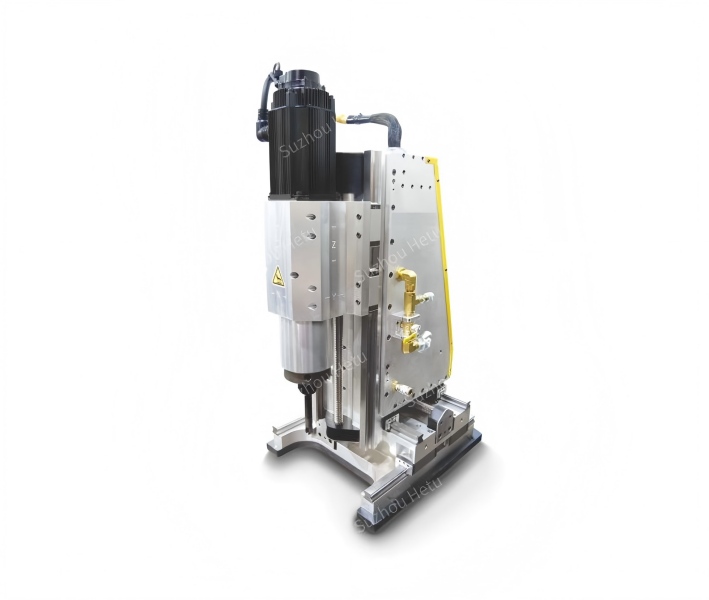

The HT CNC is a versatile, high-precision, 3-axis simultaneous portable milling machine designed for on-site applications. Integrated with a CNC control system, it can execute complex toolpaths to produce virtually any required profiles.
It is ideal for machining and repairing plain holes and threaded holes, as well as extracting broken studs or bolts.

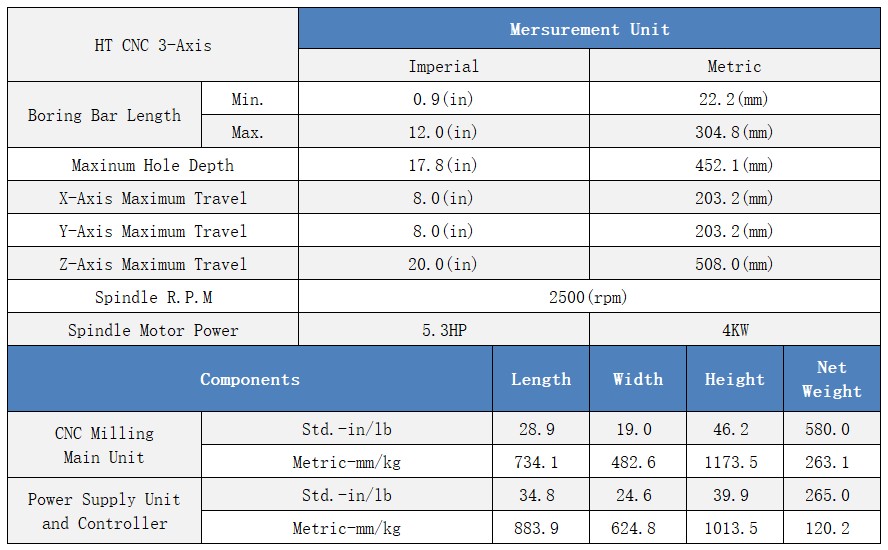

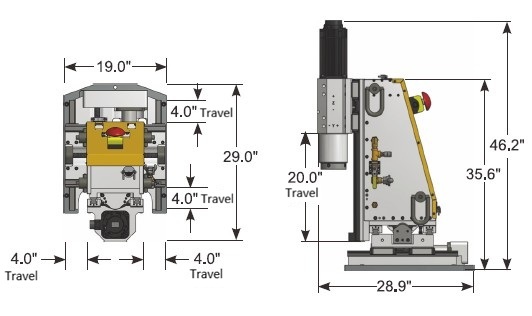

Maximum Machining Diameter: 304.8 mm
Maximum Machining Depth: 305 mm
Drive Type: Electric
Powerful Machining Performance:
Equipped with servo control to effectively minimize machining errors, the machine features high-precision ball screws on all three axles (X, Y, Z) for accurate positioning—ensuring exceptional stability and repeatable accuracy during operation.
CNC Control System:
Fitted with an imported CNC system, it employs intelligent control algorithms for efficient and precise toolpath execution. The user-friendly software interface and intuitive screen display provide real-time feedback on position and machine status.
Standard Tooling Interface:
Utilizes a standard tool holder interface for quick, easy tool installation and removal.
Typical Applications:
Capable of machining a wide range of hole types and full-series metric/inch threads, as well as extracting broken studs or seized fasteners.
