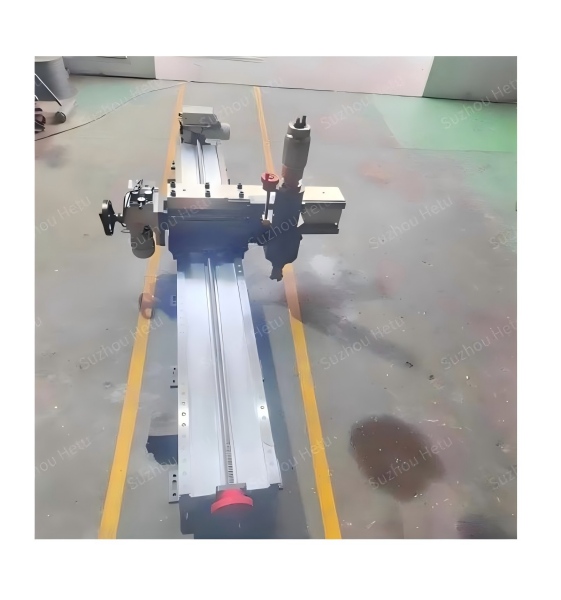

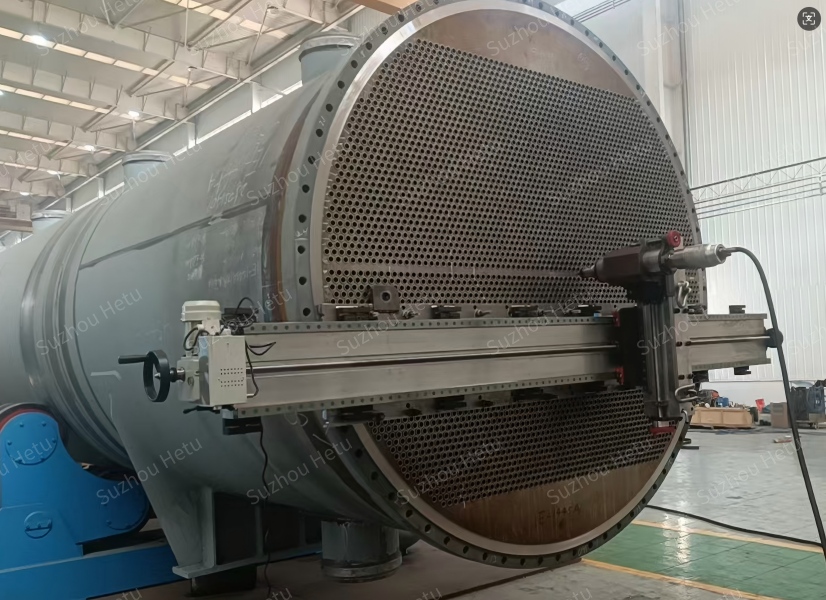

HTXYZ series 3-axis cantilever milling machine is designed for all general on-site milling applications. With independent adjustability in the X, Y, and Z directions, it offers exceptional flexibility to machine flat surfaces and holes at virtually any position.
The machine bed is made of aerospace-grade aluminum, paired with a high-rigidity spindle, resulting in a lightweight yet precise machine that is easy to install, simple to operate, and capable of high-accuracy machining. It is available with three drive options—hydraulic, electric, or pneumatic—to meet diverse field requirements.

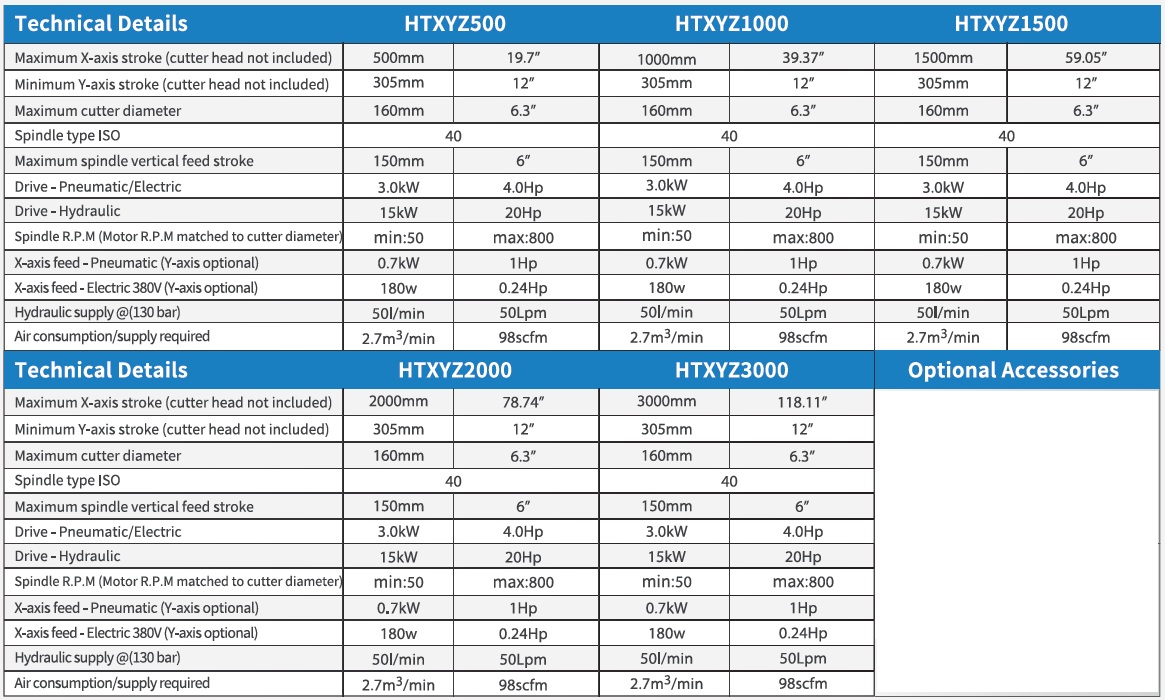

X-axis travel: Up to 3000 mm
Y-axis travel: 305 mm
Drive options: Hydraulic / Electric / Air
