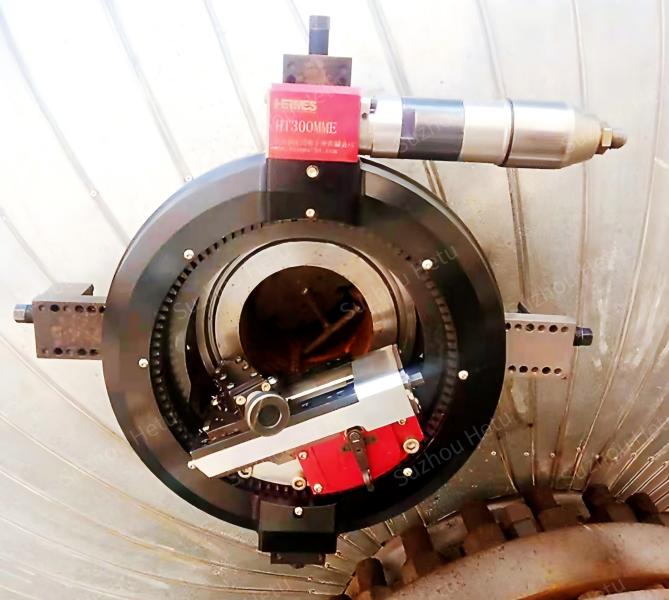

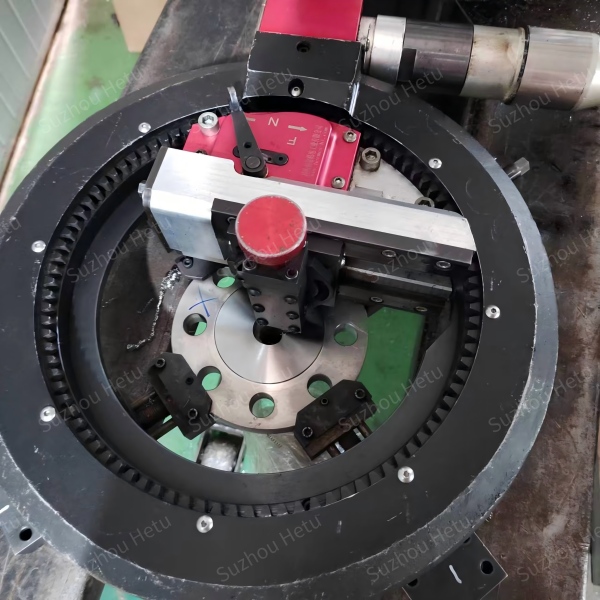

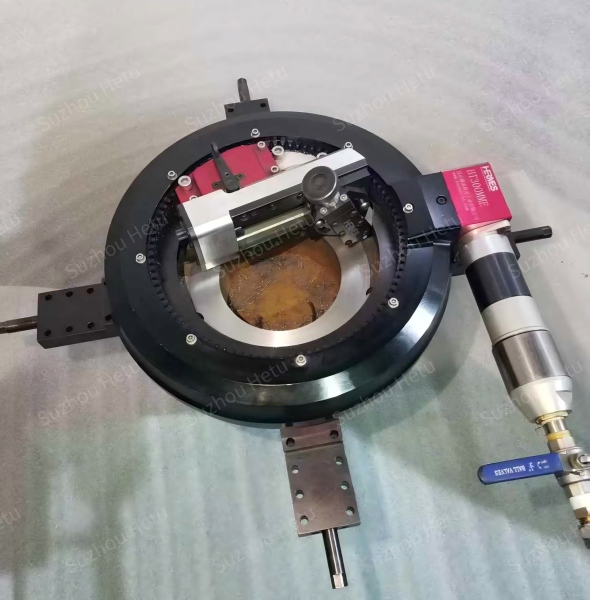

HT300MME is an externally mounted flange facing machine that clamps onto the flange outside diameter, featuring a compact design and minimal working space requirement. It is ideal for flange faces repairing in tight or confined spaces, sealing grooves machining, weld beveling, and boring holes.

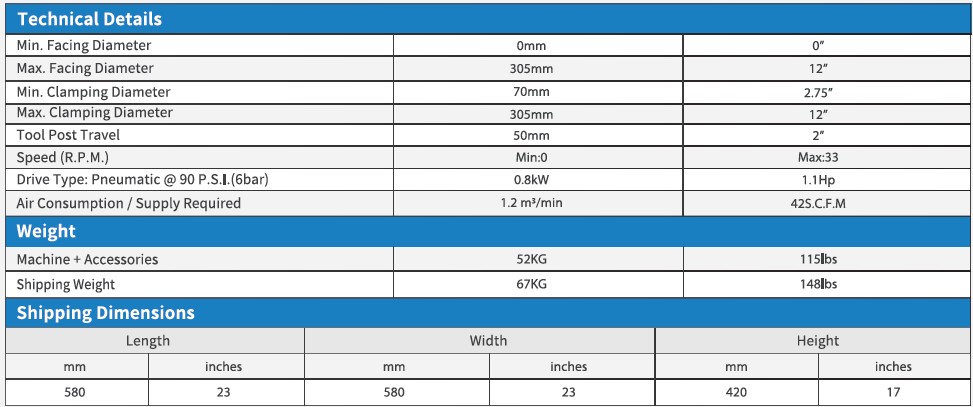

Facing Range: 0–305 mm
Drive: Air or Electric
Easy to Carry and Use:
External-mount design, compact size, lightweight, and simple to set up—ideal for tight spaces.
High-Rigidity Design:
Made with high-strength materials for better rigidity and accuracy. Delivers a smooth surface finish up to Ra 0.8.
Comprehensive functionality:
With a swiveling tool post and optional accessories, it availably machines FF/RF/RTJ/Groove/Lens flanges—and can also do weld bevels, boring, and more.
Safe for Explosive Areas:
Standard with a high-quality air motor—perfect for hazardous or explosion-proof environments.
