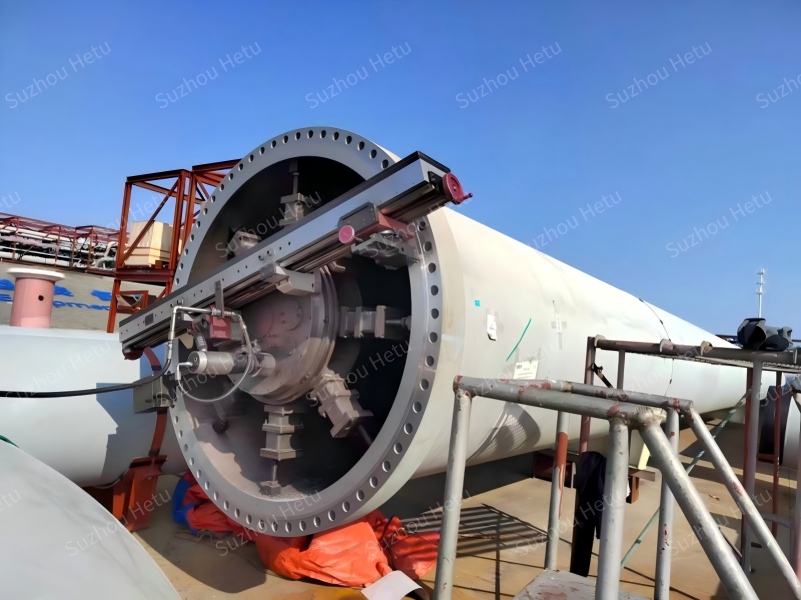

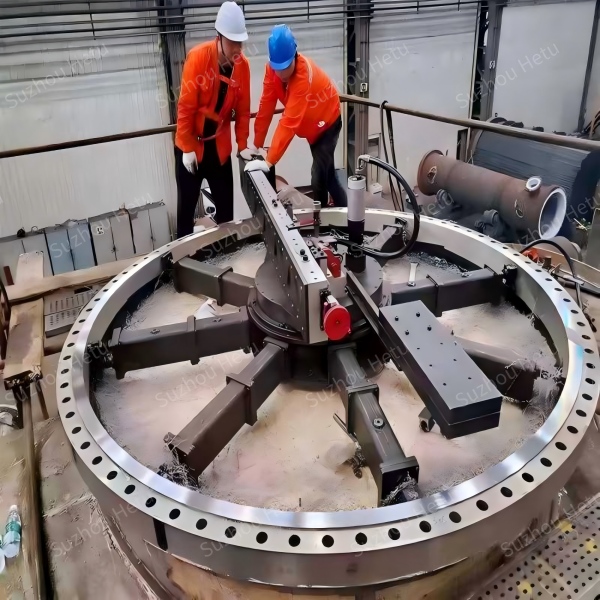

HT3000MM is dedicated on-site flange repair equipment engineered specifically for large-diameter flanges, with a machining range of 1092–3050 mm (43"–120").
Featuring a modular design, the equipment allows flexible configuration and quick assembly directly at the worksite. Load-bearing components are constructed from high-rigidity materials, while aluminum auxiliary parts significantly reduce overall weight—without compromising structural integrity. This optimized balance ensures exceptional machining accuracy across the entire facing range.
Equipped with a swiveling tool post and interchangeable attachments, the HT3000MM can machine all flange sealing face types—including FF/RF/MFM/RTJ/Groove—and can be easily adapted for boring, weld beveling, and other precision tasks.
Designed for simplicity, it enables fast setup and efficient operation, delivering reliable repairs in the shortest possible time.

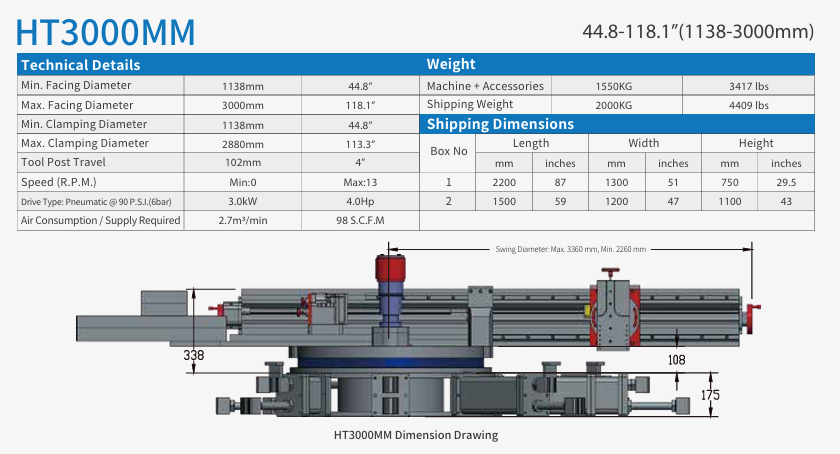

Facing Range: 1092–3050 mm (43"–120")
Drive: Air or Hydraulic
