HTZ series on-site drilling machines are specifically engineered for drilling large-diameter, deep holes. The series includes two standard models, offering a drilling capacity from 0 to 150 mm (6") in diameter, with a maximum drilling depth of 350 mm.
The spindle accepts a variety of drill types—including twist drills, annular (core) drills, and explosive-hole drills—making it highly versatile for different field applications.
Multiple mounting options—such as magnetic base, clamping plates, welding, or chain fixtures—enable rapid and secure setup on complex or uneven surfaces, ensuring fast and efficient on-site operations.

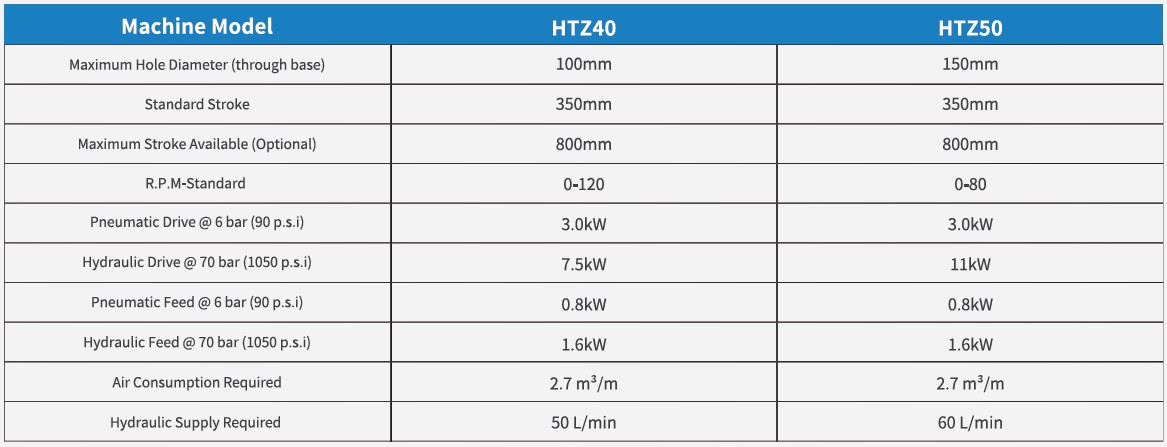

Drilling Diameter Range: 0 – 150 mm (6")
Drive Options: Hydraulic or Air
