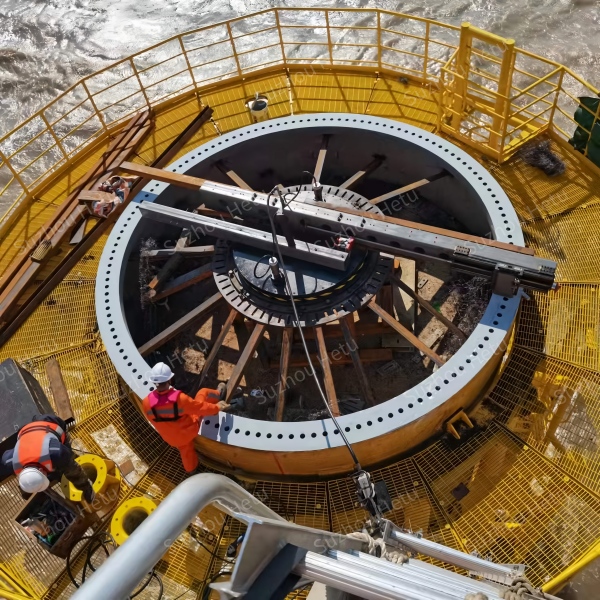

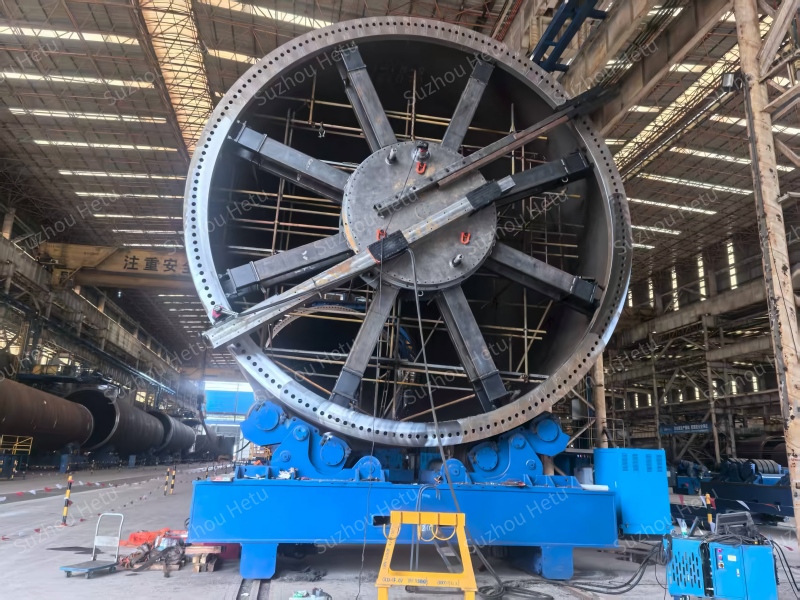

HT8000MMX is a purpose-built machining system engineered exclusively for the repair of flange sealing faces and orbital surfaces on ultra-large flanges, with a machining diameter range of 3500–8000 mm (138"–315").
Through advanced structural optimization, the machine achieves an exceptional balance between high rigidity and lightweight construction—ensuring outstanding machining stability while significantly enhancing mobility and operational efficiency in field applications.
To meet diverse operational demands, it offers three drive options: hydraulic, electric, or pneumatic, delivering a flexible power solution tailored to site-specific requirements.

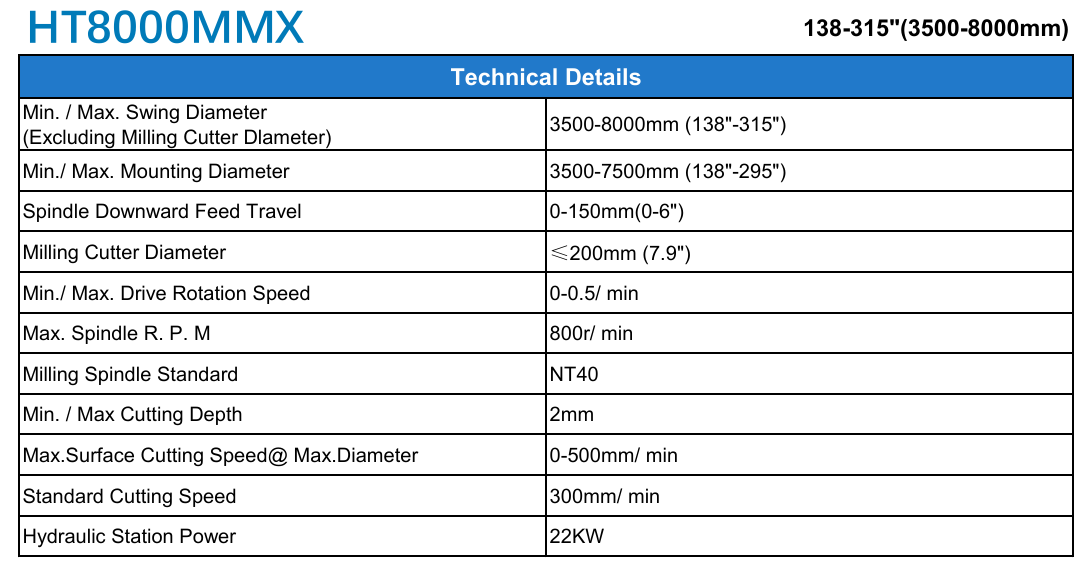

Milling Range: 3500 – 8000 mm (138" – 315")
Drive Options: Hydraulic / Electric / Air
